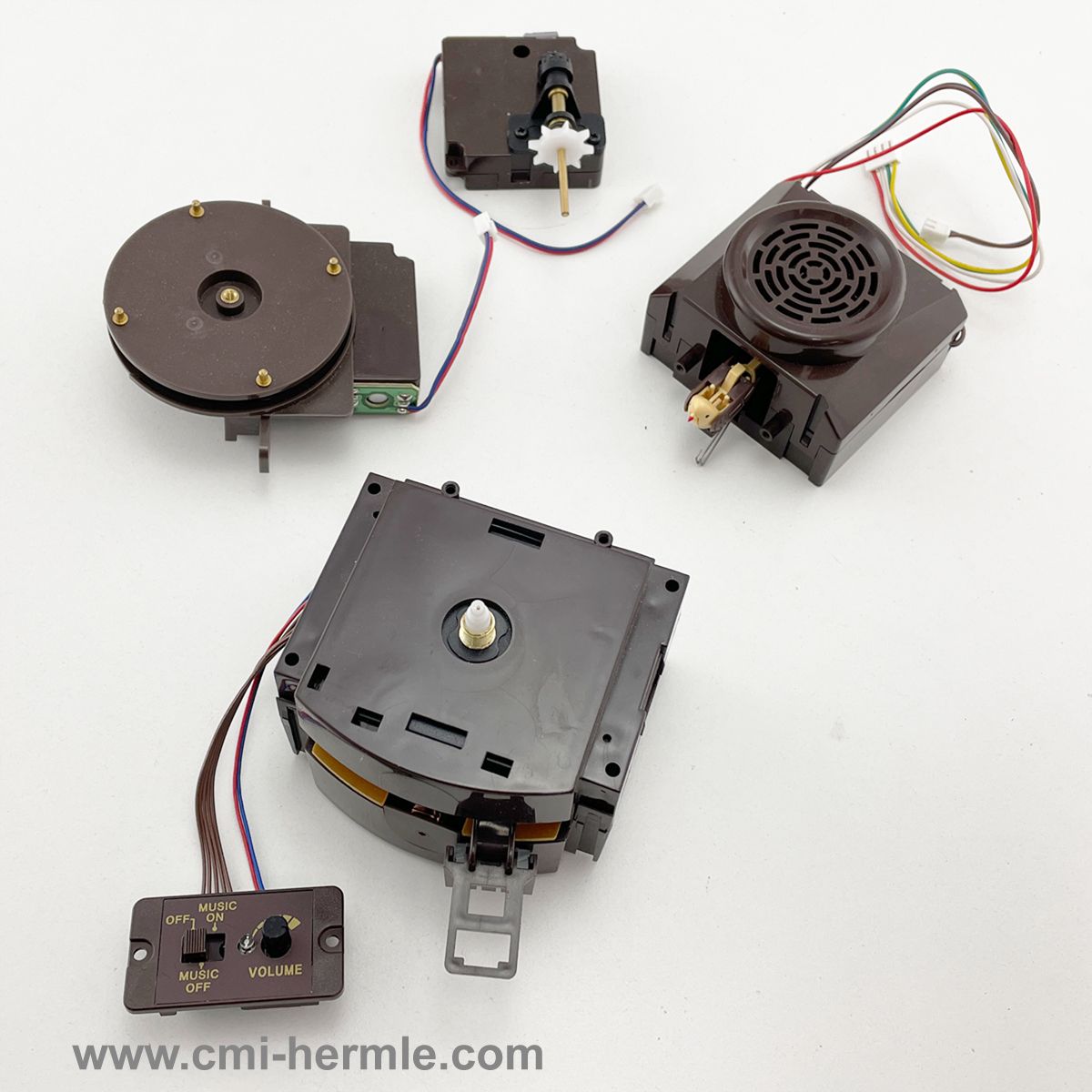

Cuckoo Quartz Movement with Bird Dancer Animator
Quartz TRENKLE Movement
Part Number : QTP.CUCKOO-7
Description : Quartz Cuckoo Pendulum Movement with
Bird, Dancer and Animator
(Max. Dial Thickness 2mm)
Size : 100mm High x 80mm Wide x 65mm Deep ( Movement )
Size : 45mm High x 70mm Wide x 60mm Deep ( Cuckoo )
Size : 40mm High x 90mm Wide x 90mm Deep ( Dancer )
Size : 35mm High x 50mm Wide x 50mm Wide ( Animator )
Weight : 380 Grams
Material : ABS Plastic Case
Features : Time ( Hours, Minutes )
Select "Cuckoo" or "Silent"
Automatic Silence at Night
Hi / Low Volume Control
Cuckoo and Moving Bird
Hand shaft is 13mm long
Maximum dial thickness to trap is 2mm or less
Dial hole should be a minimum of 8mm
Uses : These Parts
Press Fit Design Specifications
Hour hand hole bush is 5 mm dia
Minute hand hole bush is 3.2 mm dia
Locking nut thread is metric 8mm with pitch of 0.75mm
Suits : These Parts
Press FIt Hands
E122.0000 Battery ( "C" or LR14 ) x 3
See : Other Quartz Cuckoo
