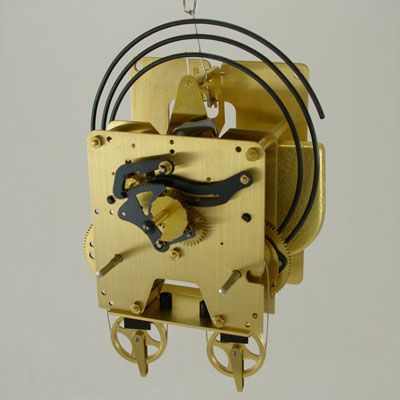

Urgos Strike MVT-Cable-60cm Pendulum

Stock Code:
W.0058.021
RRP:
$990.00
Your Price:
$990.00
Stock Level:
Out of Stock
Make an Enquiry

Details

Description

"Hermle" Mechanical - Urgos Movement

W.0058.021 / Mechanical Clock Movement / Hermle Manufacture - Urgos Movement / "Ready to Fit"

60 cm Pendulum, 8 Day, Half Hour Strike Movement, Rear Striking on Gong (84.383 bpm)

Plate Size : 80 mm x 85 mm x 18 mm Between Plates
Handshaft Size : 27.5 mm
Weight : 750 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories....

Features : Hermle Manufactured Urgos Movement W.0058 with Optional Mounting Bracket and Spiral Gong installed, "Ready to fit". Auto Beat Pendulum.

Case Requirements : The Handshaft is on the centre line of any clock ( The handshaft is not necessarily at the centre of any clock movement )
Movement Dimensions are therefore all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days ( Handshaft Up + Weight Drop = total length, excluding dial )

The Measurements for this Movement are :

Handshaft Down : 70.0 mm
Handshaft Left : 65.0 mm
Handshaft Right : 65.0 mm
Handshaft Up : 80.0 mm
Depth : 85.0 mm
Weight Drop :

Keyhole Position : The Handshaft is on the centre line of any clock
Keyhole positions are therefore all measured from the Handshaft : Up, Down 1, Down 2 and Wide ( All Measurements are Hole Centres )
Up is to the Second Hand Feature ( Seconds ) on the Centre Line above the Handshaft * THIS MODEL DOES NOT USE A SECOND FEATURE
Down 1 is to the Time/Chime and Strike Winding Positions on the left and right of the Centre Line * MODELS WITH 2 or 3 WINDING BARRELS
Down 2 is to the Time Winding Position also on the Centre Line but below the Handshaft * MODELS WITH 3 WINDING BARRELS
Width is the distance between the Time/Chime and Strike Winding Positions ( described as Down 2 )

The Keyhole Positions for this Movement are :

Handshaft Up : * Not Used on this Model
Handshaft Down 1 : 28.0 mm
Handshaft Down 2 : * Not Used on this Model
Width : 56.0mm

Suits :
Handnuts E008.1202 and E008.1203
Hands HM. series ( Except HM.08400 )
Suspension Spring E021.00060
Crutch *Urgos
Pendulum B021-086404 G

See :
W.0058.021 Urgos Movement Set - Complete with Dial, Hands, Pendulum and Weights
