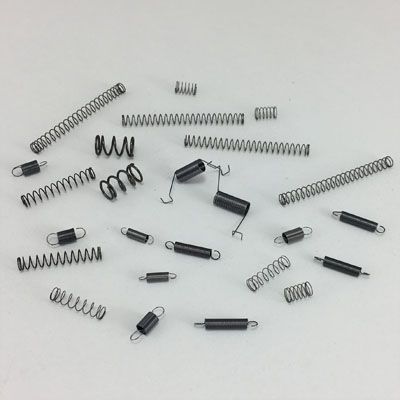

Assorted Hermle Springs (12 Pack)
Details
Description
"Hermle" Mechanical
Part Number : E014.ASST
Description : Pack of 12 - Assorted Springs to suit Hermle Mechanical Movements.
Details and Sizes below.
Size : Various
Weight : 5 Grams
Material : Spring Steel
Features : A Range of Size of Current Hermle Springs (when available)
Uses : These Hermle Parts
E014.00110 Chime Select Spring (3.69mm dia x 40mm long x 0.31mm)
E014.00870 Front Spring (2.40mm dia x 10mm long x 0.20mm)
E014.01902 Hammer Return Spring (2.80mm dia x 16mm long x 0.31mm)
E014.01903 Hammer Return Spring (2.75mm dia x 16mm long x 0.26mm)
E014.02180 Hammer Assembly Spring (4.0mm Dia x 7.0mm long x 0.20mm)
E014.02920 Hammer Return Spring (3.50mm Dia x 12mm long x 0.18mm)
E014.03630 Chime Select Spring (3.69mm Dia x 40mm long x 0.35mm)
E014.04110 Bell Spring (6.50mm Dia x 11.50mm x 0.70mm)
Suits : These Hermle Parts
Various Movements
Notes : Includes Tension and Compression Springs
See : Other Springs
Packets may include 1 or 2 each of any of the following Hermle related Springs. (when available)
Stockcode Description Size
E014.00110 Spring/Chime select 1151/1161 40mm x 3mm dia Light Compression
E014.00870 Spring/Front 340.020 10mm x 2mm dia Light Tension
E014.01902 Spring /hour hammer 261/1161 16mm x 3mm dia Medium Tension
E014.01903 Spring/hour ret 351/1151/1171 15mm x 3mm dia Medium Tension
E014.02180 Spring/Chime Hammers Ret 351.830/451 7mm x 4mm dia Light Tension
E014.02910 Spring /Hammer assm 351/461 10mm x 3mm dia Light Tension
E014.02920 Spring/Hammer Return 351to1151 12mm x 3mm dia Light Tension
E014.03630 Spring/Chime select 1171 40mm x 3mm dia Light Compression
E014.03950 Spring/Chime select 22mm x 4mm dia Medium Compression
E014.03590 Spring/Internal 1171 10mm x 4mm dia Light Tension with 2 x 8mm Legs
E014.04110 Spring for Bells on 130 to 261 12mm x 6mm Heavy Compression
