Cuckoo R25 2nd Wheel -Chime

Stock Code:
CA.122
RRP:
$29.70
Your Price:
$29.70
Stock Level:
Out of Stock

Details

Description

"Regula" Cuckoo Mechanical

Part Number : CA.122

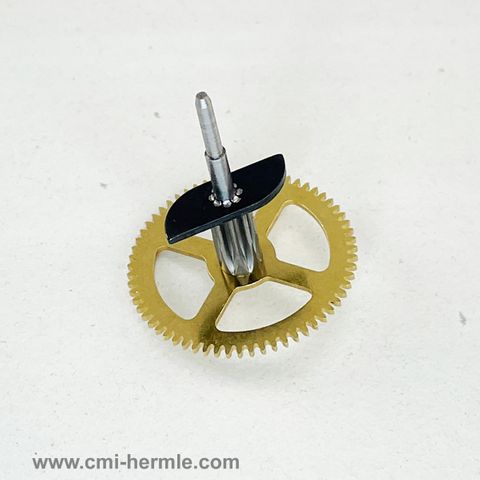

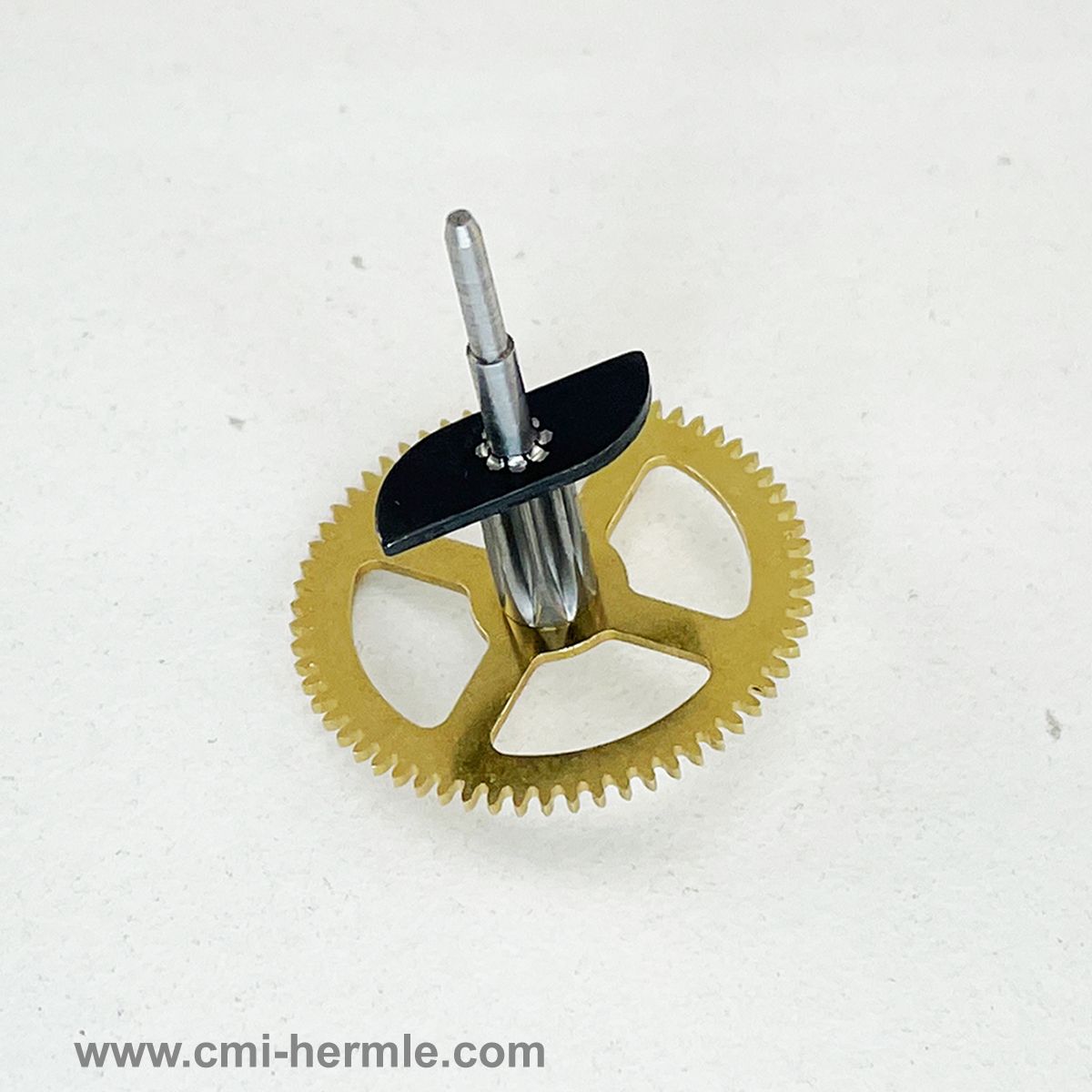

Description : 2nd Wheel to suit Regula 25 Cuckoo Movement -2nd Wheel Chime

This part is positioned on the Right Hand Side of the movement when viewed from the front.
This part suits the "Chime Train" of the R25 movements.
The Brass wheel drives the pinion of the 3rd Wheel (Conclusion)
It is driven from the Chain wheel to its own pinion leaf gear.
The extension of the pinion out the front plate has the lifting cam for the chime rack.
This pinion also has internally a two pointed star cam pressed onto the pinion that activates the bird control rod.

Brass Gear Size: 26.30mm Diameter x 1mm Thick. (Pinion distance 19.8mm to fit between plates 20mm apart.) (Extends 7.50mm from the front plate)
Brass Gear Tooth Count: 63
Steel Pinion Leaf: 5.0mm diameter x 5mm long
Steel Pinion Leaf Tooth count: 7
Weight : 15 Grams
Material : Brass, Steel Components

Uses : These Parts


Suits : These Parts
W.00025.xxxxx Movement

See : Other Wheels
CA.124
