Seiko Quartz Time and Alarm for dials < 2mm

Stock Code:
QTA.06
RRP:
$49.50
Your Price:
$49.50
Stock Level:
3 Available
Make an Enquiry

Details

Description

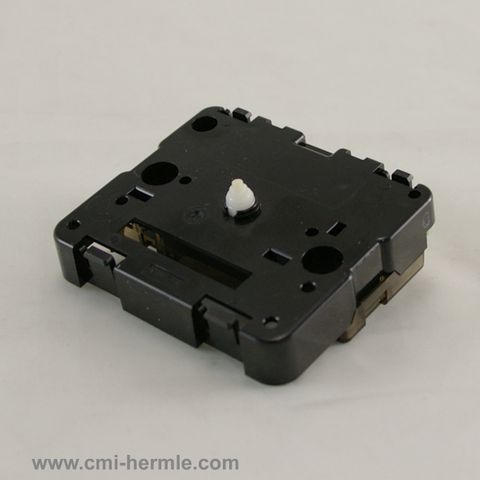

"Seiko" Quartz

Part Number : QTA.06

Description : Seiko Quartz Alarm Movement suit Dial Less Than 2 mm Thick
Seiko Trigger Feature as Printed Circuit Board for Snooze switch

Size : 55 mm Long x 50 mm Wide x 16 mm Deep
Weight : 35 Grams
Material : ABS Plastic

Features : Seiko Quartz Alarm, Short Shaft, Press Fit
Seiko 33309
Supplied with hand setting knob
Supplied with on/off switch

Hand shaft is 6.5mm long total.
Max dial thickness to trap is 2mm or less.
Dial hole should be a minimum of 7mm

Uses : These Parts
"AA" or LR6 Alkaline Battery.

Suits : These Parts
HB & Sons Carriage Clock


Notes : Press Fit Hand Only.

See : Other Quartz Movements

Small Carriage clock hands are suitable for our UTS & Seiko carriage clock quartz movements.
All clock hands are measured from collet centre to tip of minute hand.

Carriage Clock Movement Collet Dimensions:
UTS movements: Minute= Ø1.95mm, Hour = Ø3.35mm
Seiko movements: Minute = Ø1.90mm, Hour = Ø3.09mm

The hands are generic and can be adjusted to fit. The hand collets may require slots being cut for pinching (by using a piercing saw) and/or the collet can be shortened by filing.
