1/2Hr Strike Spring Ships Bell (Jewels)

Stock Code:
Your Price:
Stock Level:
Out of Stock



"Hermle" Mechanical

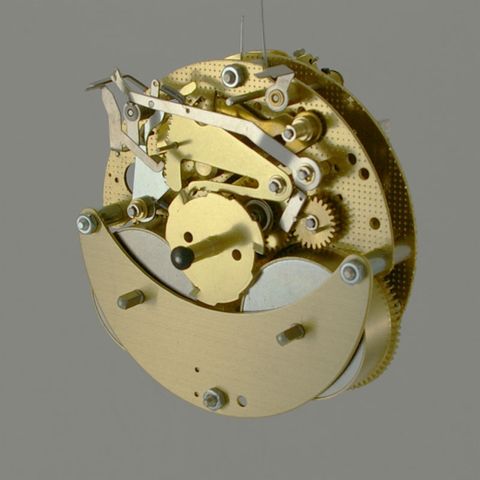

W.00132.071 SG / Mechanical Clock Movement / Ships Bell

Platform Balance, 8 Day, Spring Wound, Ships Bell, Half Hour Strike Movement, Rear Striking on Bell ( 65 mm Diameter )

Plate Size : 90 mm Diameter x 21 mm Between Plates
Handshaft Size : 25.7 mm
Weight : 500 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories....

Features : Platform Balance ( 11 Jewels ), Chime Silence Lever, Time Adjust Level +/- , Polished Bridge Plate, Strikes one Bell each half-hour, four-hour shift equals 8 Bells.

Case Requirements : The Handshaft is on the centre line of any clock ( The handshaft is not necessarily at the centre of any clock movement )
Movement Dimensions are therefore all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days ( Handshaft Up + Weight Drop = total length, excluding dial )

The Measurements for this Movement are :

Handshaft Down : 51.0 mm
Handshaft Left : 65.0 mm
Handshaft Right : 65.0 mm
Handshaft Up : 50.0 mm
Depth : 70.0 mm
Weight Drop : * Not Used on this Model

Keyhole Position : The Handshaft is on the centre line of any clock
Keyhole positions are therefore all measured from the Handshaft : Up, Down 1, Down 2 and Wide ( All Measurements are Hole Centres )
Up is to the Second Hand Feature ( Seconds ) on the Centre Line above the Handshaft * THIS MODEL DOES NOT USE A SECOND FEATURE
Down 1 is to the Time/Chime and Strike Winding Positions on the left and right of the Centre Line * MODELS WITH 2 or 3 WINDING BARRELS
Down 2 is to the Time Winding Position also on the Centre Line but below the Handshaft * MODELS WITH 3 WINDING BARRELS
Width is the distance between the Time/Chime and Strike Winding Positions ( described as Down 2 )

The Keyhole Positions for this Movement are :

Handshaft Up : * Not Used on this Model
Handshaft Down 1 : 18.0 mm
Handshaft Down 2 : * Not Used on this Model
Width : 50.0mm

Suits :
Handnuts E008.1202 and E008.1203
Hands HM. series ( Except HM.08400 )
Platform Balance E028.00140
blindplate 142 mm Ø B028-01320

See : Other Movements in this Series
