1/2Hr Strike Chain 85cm Pendulum -Special_Order

Stock Code:
W.00241.033085
RRP:
$594.00
Your Price:
$594.00
Stock Level:
Out of Stock

Details

Description

"Hermle" Mechanical

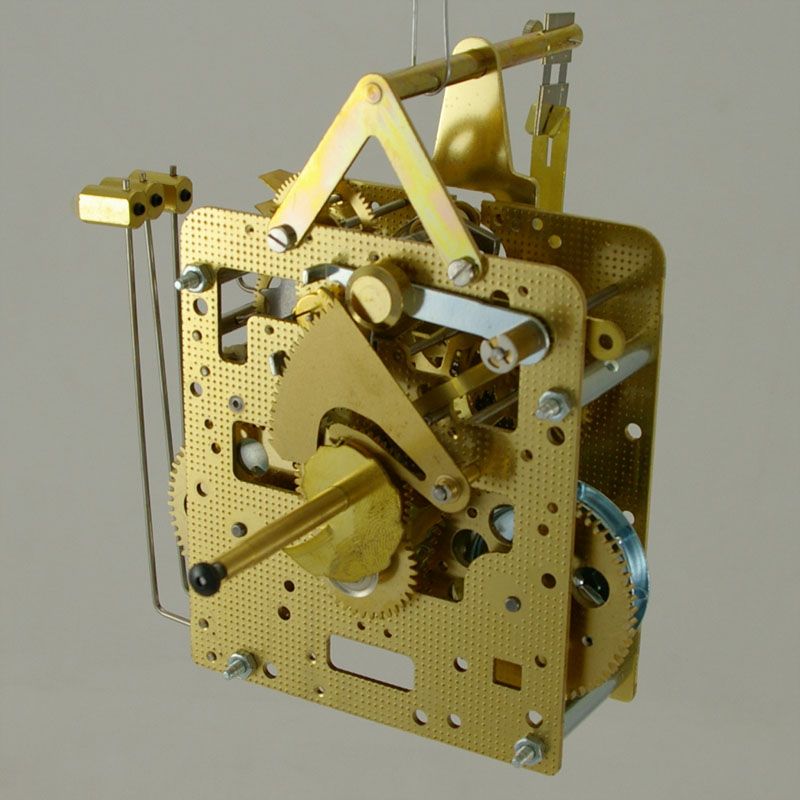

W.00241.033085 / Mechanical Clock Movement

85 cm Pendulum , 8 Day, Weight Driven, Bim Bam, Half Hour Strike Movement, Side Strike on Gong Rods

Plate Size : 85 mm x 98 mm x 32 mm Between Plates
Handshaft Size : 53.2 mm
Weight : 550 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories....

Features : Automatic Beat, Side Strike, 3 x Gong Rods

Case Requirements : The Handshaft is on the centre line of any clock ( The handshaft is not necessarily at the centre of any clock movement )
Movement Dimensions are therefore all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days ( Handshaft Up + Weight Drop = total length, excluding dial )

The Measurements for this Movement are :

Handshaft Down : 55.0 mm
Handshaft Left : 105.0 mm
Handshaft Right : 50.0 mm
Handshaft Up : 55.0 mm
Depth : 96.0 mm
Weight Drop : 1300.0 mm

Keyhole Position : There are no Keyholes required for this Movement

Suits :
Handnuts E008.1202 and E008.1203 ( smaller than W.01151 )
Hands HM. series ( Except HM.08400 for W.01171 )
Suspension Spring E021.02483
Crutch E002.07040
Pendulum PB.76, PB.77, PL.18

Bronze Gong assembly -#355 to Suit Hermle Mechanical Movement W.00241.030
Size: 200 x 50 x 90mm / Hermle Bronze sizes in 2.8mm rods: 175mm/188mm/200mm
Weight: 285 Grams
Material: 3 Bronze Rods and Cast Iron Block
Mounting Position: Side / Up Top

See : Other Movements in this Series
W.00241.030
W.00241.033
W.00241.080
W.00241.084
