Hermle 4/4 Chime 55cm/33.1mm Gong under

Stock Code:
W.00351.020055
RRP:
$880.00
Your Price:
$880.00
Stock Level:
8 Available
Make an Enquiry

Details

Description

"Hermle" Mechanical

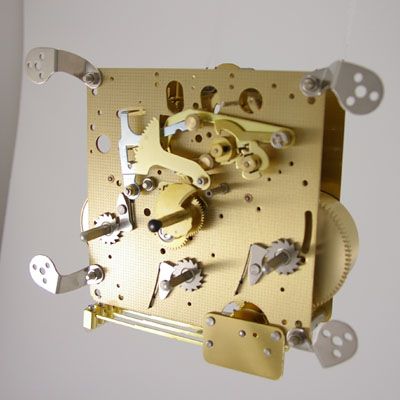

W.00351.020055 / Mechanical Clock Movement

55 cm Pendulum , 8 Day, Spring Wound, Westminster Strike Movement, Gong Rods Underneath.
New Older Stock

Plate Size : 120 mm x 120 mm x 32 mm Between Plates
Handshaft Size : 33.1 mm
Weight : 1300 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories....

Features : Automatic Sync, Automatic Beat, Westminster Melody, 5 Hammers Underneath
( Sometimes available with - Second Feature, Automatic Night Shut Off )

Case Requirements : The Handshaft is on the centre line of any clock ( The handshaft is not necessarily at the centre of any clock movement )
Movement Dimensions are therefore all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days ( Handshaft Up + Weight Drop = total length, excluding dial )

The Measurements for this Movement are :

Handshaft Down : 90.0 mm
Handshaft Left : 75.0 mm
Handshaft Right : 100.0 mm
Handshaft Up : 110.0 mm
Depth : 105.0 mm
Weight Drop : * Not Used on this Model

Keyhole Position : The Handshaft is on the centre line of any clock
Keyhole positions are therefore all measured from the Handshaft : Up, Down 1, Down 2 and Wide ( All Measurements are Hole Centres )
Up is to the Second Hand Feature ( Seconds ) on the Centre Line above the Handshaft * THIS MODEL DOES NOT USE A SECOND FEATURE
Down 1 is to the Time/Chime and Strike Winding Positions on the left and right of the Centre Line * MODELS WITH 2 or 3 WINDING BARRELS
Down 2 is to the Time Winding Position also on the Centre Line but below the Handshaft * MODELS WITH 3 WINDING BARRELS
Width is the distance between the Time/Chime and Strike Winding Positions ( described as Down 2 )

The Keyhole Positions for this Movement are :

Handshaft Up : 34.2 mm ( * Not Used on this Model)
Handshaft Down 1 : 14.0 mm
Handshaft Down 2 : 16.0 mm
Width : 93.0mm

Suits :
Handnuts E008.1202 and E008.1203 ( smaller than W.01151 )
Hands HM. series ( Except HM.08400 for W.01171 )
Suspension Spring E021.00060
Crutch E002.06810
Pendulum PB. or PG.
Gong Assembly 370 or 372
Dial 929.10R (180mm Dia), 930.10R or 932.10R (with second feature if applicable)(200mm Dia)


See : Other Movements in this Series
W.00351.020038
W.00351.020055
