Bent Flap Hinge BRASS-LIFT OFF (RH-pair)

Stock Code:
V.499013.R
RRP:
$29.95
Stock Level:
47 Available

Details

Description

Case Hardware

V.499013-R / Lift Off Right Hand Orientation/ Offset Hinge with Finials

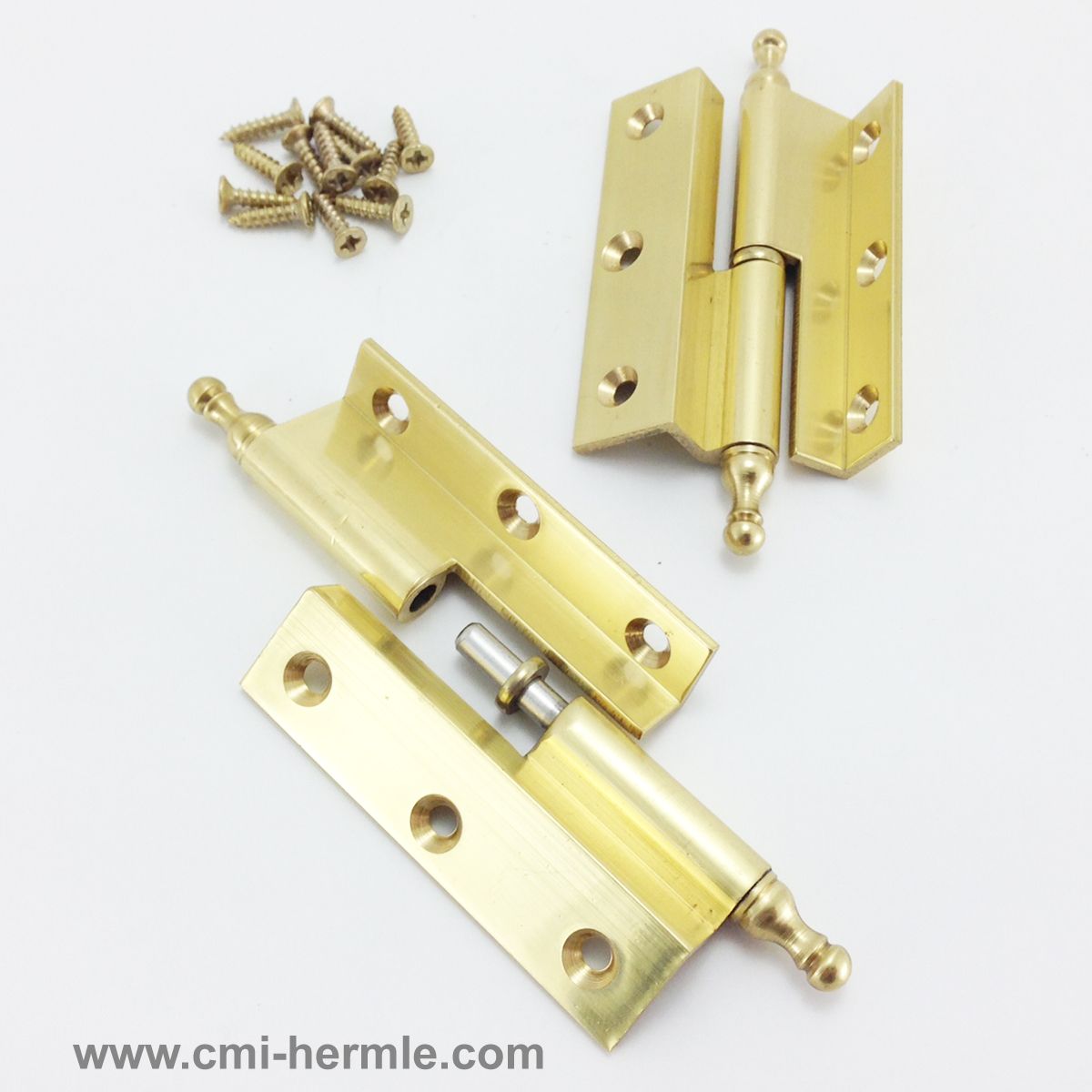

Lift Off style - Offset Solid Brass Hinge with Finial ends and Countersunk Holes.

* For Right Hand Opening Only *


Total Size : 88 mm (across Finials) x 33 mm (fully open position)
Large Flap Size : 60 mm x 7.3 mm x 15.3 mm x 1.8 mm plate ( 10 mm throw )
Small Flap Size : 60 mm x 9.3 mm x 11.5 mm
Finial Size : 13 mm Long x 7 mm Max Diameter (each end)
Bar Diameter : 8 mm
Weight : 160 Grams

Material : Solid Brass

This Hinge opens more than 270 Degrees, when closed there is a 1 mm gap between the Flaps

Sold as a Pair.

See :
V.499005 ( 50 mm Lift Off )
V.499006 ( 75 mm Lift Off )
V.499007 ( Ball & Pin Hinge)
V.499008 ( Pin & Socket Hinge )
V.499009 ( Brass Plate Hinge )
V.499011 ( 2 inch / Finial Hinge )
V.499013 ( Lift Off / Bent Flap Hinge )
V.499014 ( Bent Flap Hinge )
V.499015 ( 1/2 inch Brass Sheet Hinge )
V.499017 ( 1 inch / Finial Hinge )
