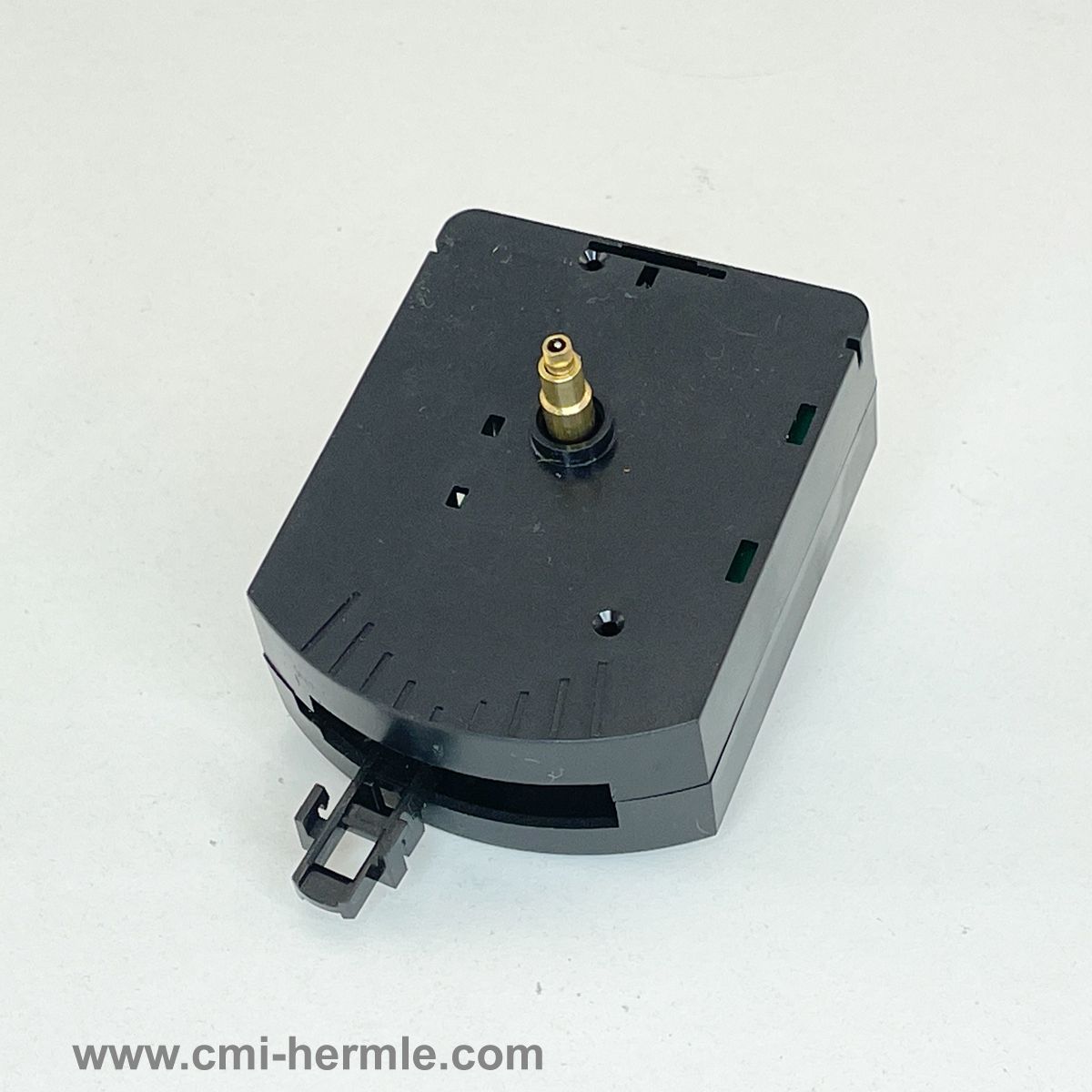

Cuckoo Quartz Pendulum Forest Cuckoo Movement
Quartz Hechinger Movement
Part Number : QTP.CUCKOO-1-F
Description : German Made Quartz Cuckoo Forest/Waterfall sounds Pendulum Movement
(Max. Dial Thickness 3mm)
Size : 10mm High x 60mm Wide x 50mm Deep ( Movement )
Weight : 95 Grams
Material : ABS Plastic Case
Features : Time ( Hours, Minutes )
"Majestic Cuckoo in Forest with Waterfall background sounds.
Hand shaft is 17mm long
Maximum dial thickness to trap is 3mm or less
Dial hole should be a minimum of 8mm
Uses : These Parts
Euroshaft Design Specifications
Hour hand hole bush is 5mm dia
Minute hand hole is slotted 4mm dia slotted width is 3mm
Second Hand feature pin shaft size: 0.80mm
Hand nut thread is metric 3.5mm with pitch of 0.35mm
Locking nut thread is metric 8mm with pitch of 0.75mm
Suits : These Parts
Press FIt Hands 23mm / 18mm
Dial is 45mm Diameter
Pendulum is 80mm Long
Bird is 26mm Long x 18 mm High
Weights on Chains is 55mm Long x 40mm Wide
E122.0000 Battery ( "AA" or LR6 ) x 1
See : Other Quartz Cuckoo
