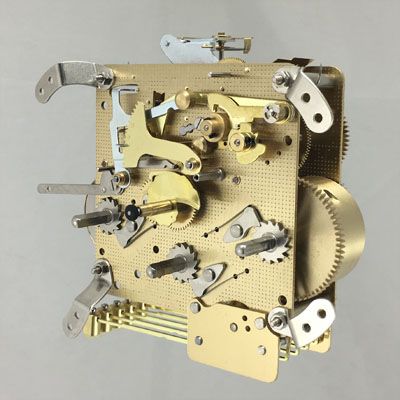

Westminster Chime Movement 33.2mm shaft -Core Stock

Stock Code:
W.00340.020
RRP:
$649.00
Your Price:
$649.00
Stock Level:
9 Available
Make an Enquiry

Details

Description

"Hermle" Mechanical

Part Number : W.00340.020

Description : 8 Day, Spring Wound, Floating Balance, Westminster Strike Movement

*** Factory Bronze Bushing*** on First Wheel of Each Drive Train. (6 bushings total)
** NOW STANDARD WITH ANSO-(auto night shut off)

Plate Size : 100 mm x 100 mm x 35.2 mm
Handshaft Size : 33.2 mm
Weight : 500 Grams

Materials : Polished Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories

Notes on Dimensions : The Handshaft is on the Centre Line of any Clock Case or Cabinet,
but the Handhshaft is not always at the Centre of the Mechanical Movement.

Below is the Technical Information used to Describe this Movement.

Measurements : Taken from the Tip of the Handshaft

Handshaft Left : 90.0 mm
Handshaft Right : 90.0 mm
Handshaft Up : 75.0 mm
Handshaft Down : 90.0 mm
Depth : 85.0 mm

Keyhole Centres : Taken from the Centre of the Handshaft

Handshaft Down 1 - Left and Right Windings : 10.0 mm
Handshaft Down 2 - Bottom Centre Winding : 14.2 mm
Width - Left to Right Winding Positions : 81.5 mm

Uses : These Hermle Parts
Mounting Leg SET

Suits : These Hermle Parts
Handnuts E008.1202 and E008.1203
Hands HM.0
Barrel B013.90400 ( Time )
Barrel B013.90400 (Strike)
Barrel B013.90410 (Chime)
Dial 928.08 / 929.08 / 930.08
Gong 370 ( Longest Rod 200 mm )

Notes :

See : Other Clock Movements
