1/2Hr Strike Spring 23cm Pendulum

Stock Code:
Your Price:
Stock Level:
1 Available

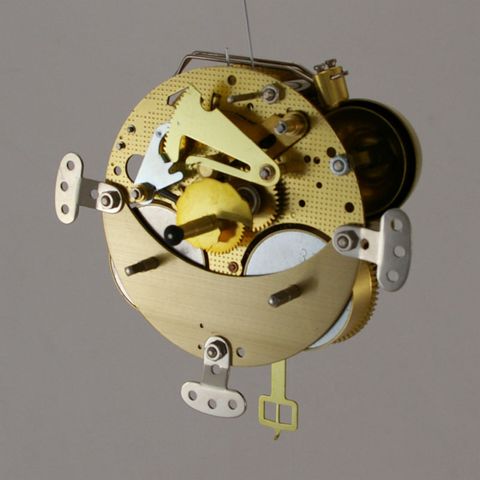

"Hermle" Mechanical

W.00131.080023 / Mechanical Clock Movement / *Different Pendulum Series are Available

23 cm Pendulum, 8 Day, Spring Wound, Bim Bam, Half Hour Strike Movement, Rear Striking on Bells ( 32 / 36 mm Diameter )

Plate Size : 90 mm Diameter x 21 mm Between Plates
Handshaft Size : 30.5 mm
Weight : 500 Grams

Materials : Brass and Brass Plated Components, Machined Steel Parts and Nickle Plated Accessories....

Features : 23cm Pendulum Series

Case Requirements : The Handshaft is on the centre line of any clock. The handshaft is not necessarily at the centre of any clock movement.
Movement Dimensions are therefore all measured from the handshaft : Down, Left, Right and Up ( including any Gong or Bell Assembly )
Depth is total depth from the tip of the Handshaft to the rear most point ( including any Gong or Bell Assembly )
The Weight Drop is Measured from the Handshaft to the Bottom of the Weight Shells after 7 Days ( Handshaft Up + Weight Drop = total length, excluding dial )

The Measurements for this Movement are :

Handshaft Down : 50.0 mm
Handshaft Left : 65.0 mm
Handshaft Right : 65.0 mm
Handshaft Up : 75.0 mm ( when hammer is raised )
Depth : 105.0 mm
Weight Drop : * Not Used on this Model

Keyhole Position : The Handshaft is on the centre line of any clock
Keyhole positions are therefore all measured from the Handshaft : Up, Down 1, Down 2 and Wide ( All Measurements are Hole Centres )
Up is to the Second Hand Feature ( Seconds ) on the Centre Line above the Handshaft * THIS MODEL DOES NOT USE A SECOND FEATURE
Down 1 is to the Time/Chime and Strike Winding Positions on the left and right of the Centre Line * MODELS WITH 2 or 3 WINDING BARRELS
Down 2 is to the Time Winding Position also on the Centre Line but below the Handshaft * MODELS WITH 3 WINDING BARRELS
Width is the distance between the Time/Chime and Strike Winding Positions ( described as Down 2 )

The Keyhole Positions for this Movement are :

Handshaft Up : * Not Used on this Model
Handshaft Down 1 : 18.0 mm
Handshaft Down 2 : * Not Used on this Model
Width : 50.0mm

Suits :
Handnuts E008.1202 and E008.1203
Hands HM. series ( Except HM.08400 )
Suspension Spring E021.00060
Crutch E002.06810
Pendulum B021.00340
Barrels B013.90321 ( Time ) & B013.90332 (Strike)

See : Other Movements in this Series
